Custom-Engineered Gasketed Plate Heat Exchangers

Name: Custom-Engineered Gasketed Plate Heat Exchangers
Brand: SHPHE
Availability: InStock

Certificates: ASME, NB, CE, BV, SGS etc.

Since the invention of the plate heat exchanger (PHE) in 1923, thermal technology has evolved from standard food-grade processing to highly complex industrial operations. At SHPHE, we take this classic, versatile design and transform it into highly bespoke heat transfer solutions tailored to your unique process fluids and thermal loads. While traditional gasketed PHEs offer high efficiency and compact footprints, SHPHE optimizes plate corrugations, metallurgy, and sealing systems to handle your specific chemical, HVAC, or energy recovery parameters. Our custom-engineered gasketed plate heat exchangers provide outstanding scalability and ease of maintenance, serving as an indispensable asset for heavy industries—including oil and gas, metallurgy, and food processing—where uptime, energy recovery, and long-term sustainability are top priorities.

product details

What is Gasketted Plate Heat Exchanger?

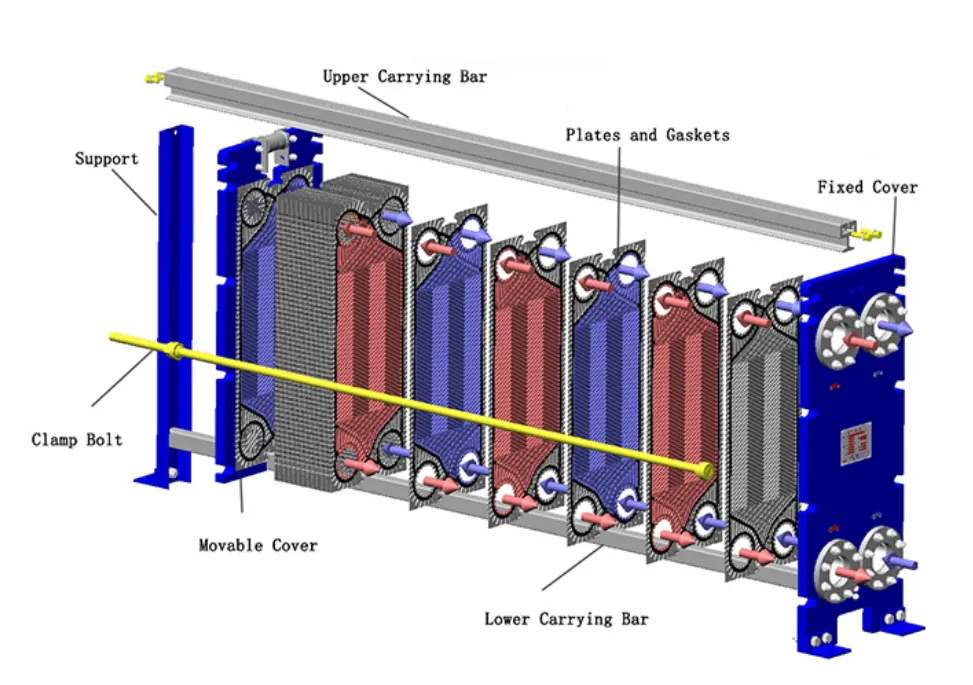

An SHPHE custom gasketed plate heat exchanger is precision-engineered using an array of scientifically corrugated heat transfer plates, tightly sealed by application-specific gaskets and compressed within a heavy-duty frame plate via high-strength tie rods. Rather than using generic off-the-shelf configurations, our engineers calculate the precise flow path required for your media. As fluids enter through optimized nozzles, they are uniformly distributed across alternating flow channels. Our designs enforce a true countercurrent flow regime, creating intense local turbulence that maximizes the overall heat transfer coefficient ($U$-values). This enables efficient heat exchange between hot and cold fluids while protecting your thermal cycle against cross-contamination.

Industry Applications of ‌‌Gasketed Plate Heat Exchanger

Plate heat exchangers are widely used across industries due to their efficiency, compact design, and versatility. They play a critical role in applications such as HVAC systems, chemical processing, food and beverage production, and power generation. By reducing energy consumption and operational costs, plate heat exchangers significantly enhance industrial efficiency and sustainability, making them indispensable in modern industrial operations..

Oil and Gas
Oil and Gas industry is a cornerstone of modern industry, with a supply chain covering everything from the extraction and processing of oil and gas to the production and sale of various petrochemical products. These products are widely used in sectors such as energy, chemicals, transportation, construction, and pharmaceuticals, making the industry essential for economic development. Plate heat exchangers are widely applied in the oil and gas industry due to their high efficiency, compact size, corrosion resistance, and ease of maintenance, making them an ideal choice for this sector.

learn more
Metallurgy
This heat exchanger is widely utilized in metallurgy such as alumina production and mining for handling challenging fluids like slurries and ore suspensions. Its robust design ensures efficient heat transfer, prevents clogging, and facilitates easy cleaning, making it an indispensable solution for demanding industrial applications..

learn more
Food
Food industry encompasses production, processing, packaging, and distribution of consumables, prioritizing safety, efficiency, and sustainability. Key sectors include dairy, beverages, canned goods, and prepared foods. Plate heat exchangers (PHEs) play a vital role in thermal processes such as pasteurization, heating, cooling, and concentration. Their compact design, high heat transfer efficiency, and hygienic surfaces ensure rapid temperature control while minimizing energy waste. PHEs also reduce cross-contamination risks and support heat recovery systems, aligning with industry demands for cost-effectiveness and eco-friendly practices. Applications span milk sterilization, juice processing, and waste heat reuse, enhancing productivity and compliance with stringent food safety standards.

learn more
Environmental protection
Environmental Protection industry focuses on reducing pollution, conserving resources, and promoting sustainable development. Its importance lies in addressing climate change, protecting ecosystems, and ensuring public health. The primary goal is to achieve "zero emissions" by minimizing waste and transitioning to renewable energy. This is achieved through advanced technologies, waste recycling, and energy-efficient systems. Plate heat exchangers (PHEs) play a crucial role by enhancing energy efficiency in industrial processes, reducing energy consumption, and enabling heat recovery. Their compact design and high heat transfer efficiency support sustainable practices, making them essential in achieving emission reduction targets and fostering a greener future.

learn more

product advantage

Compact & Modular Design

High-Density Space Optimization: SHPHE designs achieve an exceptional surface-area-to-volume density of 100–200 m²/m³, radically outperforming traditional shell-and-tube units (which only offer 20–50 m²/m³). This compact engineering allows us to reduce the physical footprint of your thermal system by 70–90%, seamlessly integrating high-capacity performance into tightly constrained plant layouts.
Future-Proof Modular Scalability: Our flexible framing technology allows for effortless capacity adjustment. As your production demands evolve, individual heat transfer plates can be added or removed to modify the total thermal duty, providing a scalable solution that eliminates the cost of purchasing a completely new unit.

Thermal Efficiency

Targeted Turbulence Corrugation: We analyze your fluid mechanics to custom-select the optimal herringbone, chevron, or washboard plate corrugation patterns. This micro-channel geometry triggers severe, continuous fluid turbulence, achieving remarkable heat transfer coefficients (U-values of 3,000–7,000 W/m²·K for liquid-liquid applications) even at low flow velocities.
Close Temperature Approach Capability: Engineered with high-precision counterflow channel layouts, our units can manage extreme temperature crosses where the hot outlet stream drops below the temperature of the cold outlet. This extreme thermal precision allows for unprecedented energy regeneration in high-efficiency industrial recycling loops.

Consult Engineers
Material & Construction Flexibility

Bespoke Industrial Metallurgy: SHPHE utilizes specialized, high-grade metals to extend equipment lifespans across diverse chemical applications. We fabricate custom plate packs using standard Stainless Steel (316L), pure Titanium for high-chloride or seawater environments, and exotic Hastelloy alloys to combat aggressive, high-temperature acidic media.
Application-Specific Gasket Sealing: To guarantee absolute chemical compatibility and leak prevention, we match your process fluids with custom-formulated elastomeric gaskets, including high-grade Nitrile, EPDM, and extreme-chemical-resistant Viton, ensuring easy tool-free replacement and simplified field maintenance.

Operational Versatility

Customized Multi-Pass Flow Regimes: SHPHE thermal engineers can arrange the internal channels into sophisticated multi-pass configurations. This enables us to optimize fluid distribution and hydraulic balance when handling highly asymmetrical flow rates or extreme temperature gradients across the process loop.
Anti-Fouling Surface Engineering: The ultra-smooth finishes of our stamped plates combined with customized shear stress profiles inhibit the crystallization of scales and particles. Furthermore, the system is fully compatible with specialized Clean-in-Place (CIP) systems, allowing rapid chemical cleaning with minimal maintenance downtime.

Consult Engineers

How We Engineer and Manufacture Your Custom Gasketted PHE

Design

Process Requirements Analysis:
We custom-simulate and analyze your heat transfer capacity, exact fluid flow rates, pressure constraints, and approach temperatures to establish the foundation of your tailored system.
Plate Configuration Mapping:
We select specialized plate patterns (such as advanced chevron or herringbone matrices) and dimensions against the chemical realities of your media to balance thermal conduction and structural resilience.
Active Surface Area Optimization:
Utilizing advanced thermodynamic modeling software, our engineers precisely calculate the required heat transfer area, optimizing the logarithmic mean temperature difference (LMTD) against the required heat load.
Flow Arrangement Engineering: We strategically configure single or multi-pass networks to optimize velocity profiles, maximize thermal recovery, and meet strict pressure drop tolerances specified by your plant.
Mechanical Strength Simulation:
We engineer robust compression frames, headers, and tightening rods according to international codes (such as ASME) to safely withstand heavy cyclic pressure loads and extreme temperatures.

Manufacture

High-Tonnage Plate Pressing:

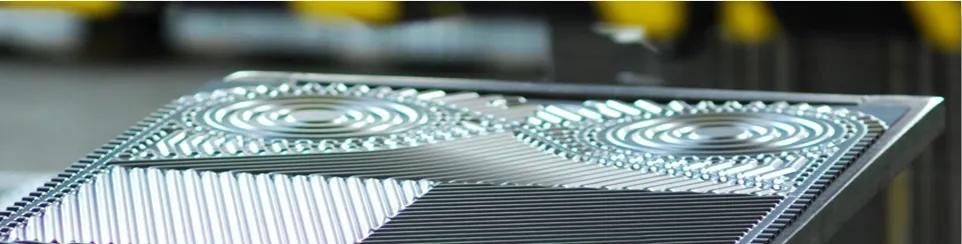

Plates are precision-stamped from premium metal sheets using automated heavy-tonnage presses to form perfect corrugations with homogeneous thickness, ensuring maximum fatigue resistance.
Heavy-Duty Frame Fabrication:
The compression frame and headers are fabricated from robust structural steel or stainless steel through rigorous machining and certified welding, ensuring perfectly aligned clamping metrics.
Precision Gasket Integration:

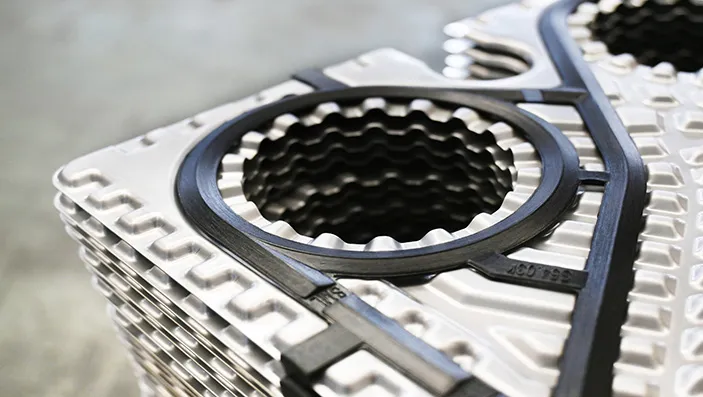

High-performance elastomeric gaskets (Nitrile, EPDM, Viton) are mechanically seated into specially engineered plate grooves, ensuring a reliable, long-lasting, pressure-tight seal.
Controlled Tension Assembly:
The plate matrix is meticulously aligned within the guide frame, followed by uniform tightening of the high-strength compression bolts to reach the exact design dimensions.
Rigorous Performance Testing:
Every custom unit undergoes exhaustive quality inspections before delivery, including full hydrostatic pressure testing, leak detection, and compliance validation with international third-party standards.

Parameter Item	Parameter
Max. Design Temperature	180 ℃
Max. Design Pressure	36 Bar
Plate Thickness	0.4 – 1.0 mm
Nozzle Size	Nozzle Size
Max. Area	4000㎡
