What is the principle of SHPHE pillow plates?

The core thermodynamic superiority of the SHPHE Pillow Plate lies in its precision-welded micro-inflation matrix. Two alloy sheets are flawlessly joined via automated laser spot welding and perimeter seam welding, then hydraulically inflated to create a customized internal pillow-like cavity pattern. This specific profile forces the heat transfer media (whether utilizing chilled water, thermal oil, steam, or refrigerants) into a continuous, highly turbulent flow regime even at ultra-low flow rates, dramatically boosting heat transfer coefficients. Furthermore, this continuous dimpled array cross-links the sheets, acting as built-in stay-bolts that structurally reinforce the entire asset, allowing it to easily handle extreme hydraulic pressure fluctuations and vacuum conditions without deformation.

What are the product advantages of SHPHE pillow plates?

SHPHE pillow plates offer high thermal efficiency through customized micro-channel turbulence, a lightweight design via material-optimized weight reduction, mechanical strength with ASME-grade pressure resilience up to 63 Bar, versatility with infinite geometric adaptability, hygienic properties with an ultra-sanitary crevice-free profile, and cost-effectiveness through reduced energy and asset lifecycle OPEX.

What are the product parameters of SHPHE pillow plates?

Max. Area Each Plate: 24㎡; Plate Thickness: 0.8 – 4mm; Design Temperature: -20 ~ 300℃; Max. Design Pressure: 63 Bar; Plate material: 304, 316L, 2205, 904L, ST13, C-276, Titanium etc.

How does SHPHE design and manufacture custom pillow plates?

SHPHE follows a four-step process: Engineering Parameters Definition (analyzing thermodynamic duty to calculate panel dimensions, material thickness, and structural load-bearing parameters), Microchannel Profile Mapping (custom-modeling dimpled layout, laser welding pitch, and inflation height), Aggressive Media Metallurgy (selecting tailored metals including Stainless Steel 304/316L, Duplex Steel 2205, 904L, and pure Titanium), and Automated Fiber Laser Fusion & Assembly (using high-speed automated CNC fiber laser seam and spot welding machines, then hydraulically inflating and integrating panels via certified ASME procedures).

What certificates does SHPHE hold?

SHPHE is certified with ISO9001, ISO14001, OHSAS18001 and holds ASME U Certificate. Our products carry certificates including ASME, NB, CE, BV, SGS etc.

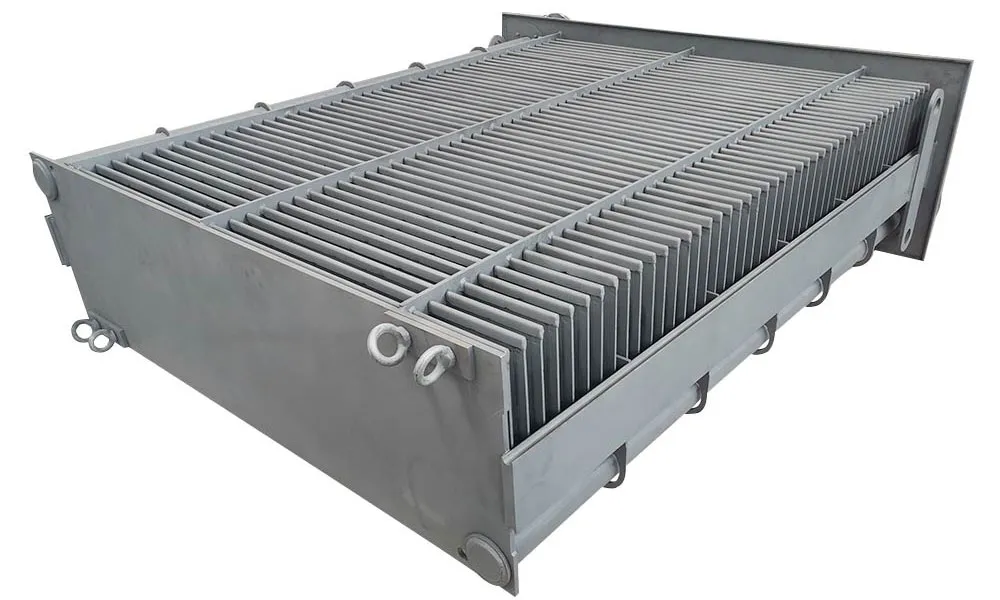

Custom-Engineered Pillow Plate (Pressure-welded PHE)

Certificates: ASME, NB, CE, BV, SGS etc.

Originated in the mid-20th century to bypass the manufacturing bottlenecks and weight limitations of standard jacketed thermal components, the Pillow Plate (also known as a dimple plate or embossed plate) has revolutionized precision fluid-wall engineering. At SHPHE, we take this highly flexible technology and elevate it into a core foundation for bespoke industrial heat transfer integration. By utilizing state-of-the-art automated CNC fiber laser welding, our engineers customize the mechanical inflation profiles and spot pitch grids to directly match your specific fluid dynamics, pressure limits, and vessel configurations. Today, SHPHE's custom pillow plates are indispensable assets for worldwide processing plants prioritizing advanced thermal performance, zero-leak safety, and hygienic processing—serving as the definitive solution across food, pharmaceutical, chemical, and bulk solids cooling sectors.

product details

Principle of Pillow Plates

The core thermodynamic superiority of the SHPHE Pillow Plate lies in its precision-welded micro-inflation matrix. Two alloy sheets are flawlessly joined via automated laser spot welding and perimeter seam welding, then hydraulically inflated to create a customized internal pillow-like cavity pattern. This specific profile forces the heat transfer media (whether utilizing chilled water, thermal oil, steam, or refrigerants) into a continuous, highly turbulent flow regime even at ultra-low flow rates, dramatically boosting heat transfer coefficients. Furthermore, this continuous dimpled array cross-links the sheets, acting as built-in stay-bolts that structurally reinforce the entire asset, allowing it to easily handle extreme hydraulic pressure fluctuations and vacuum conditions without deformation.
Widely Used in Modern Industrial Applications

SHPHE custom-tailored pillow plates break the geometric limitations of traditional shell-and-tube or standard plate heat exchangers, serving as an incredibly versatile canvas for heavy industrial design. Whether engineered as flat falling-film chillers, bent to wrap precisely around dairy and chemical fermentation tanks, or structured as heavy-duty bulk solids cooling banks, this technology seamlessly conforms to your processing architecture. Our ability to optimize channel volumes, withstand severe corrosion, and minimize tare weight provides global engineers with infinite freedom of design, ensuring maximum thermodynamic throughput across diverse industrial sectors.

Industry Applications of ‌Pillow Plates

SHPHE's innovative laser-welded Pillow Plates are deployed globally as mission-critical thermal solutions across spaces where traditional heat exchangers fall short

. Their unique geometric flexibility and high-pressure mechanical ratings make them ideal for specialized environmental protection loops, hygienic dairy and beverage fermentation jackets, and aggressive chemical processing drop-in banks

. By driving down fuel consumption and maintaining smooth fluid passage, SHPHE helps global plants achieve continuous production security

Food
Food industry encompasses production, processing, packaging, and distribution of consumables, prioritizing safety, efficiency, and sustainability. Key sectors include dairy, beverages, canned goods, and prepared foods. Plate heat exchangers (PHEs) play a vital role in thermal processes such as pasteurization, heating, cooling, and concentration. Their compact design, high heat transfer efficiency, and hygienic surfaces ensure rapid temperature control while minimizing energy waste. PHEs also reduce cross-contamination risks and support heat recovery systems, aligning with industry demands for cost-effectiveness and eco-friendly practices. Applications span milk sterilization, juice processing, and waste heat reuse, enhancing productivity and compliance with stringent food safety standards.

learn more

product advantage

High Thermal Efficiency

Customized Micro-Channel Turbulence: The inflated pillow geometries induce a uniform, alternating flow path that breaks up fluid boundary layers. This engineered turbulence maximizes convective heat transfer coefficients across the entire plate surface, delivering elite cooling or heating performance within a highly compact profile.

Lightweight Design

Material-Optimized Weight Reduction: The high-pressure resistance of our laser spot matrix eliminates the need for thick, heavy structural jackets. We achieve maximum pressure thresholds with significantly reduced plate gauges, resulting in a lightweight profile that reduces structural plant loads, lowers shipping costs, and minimizes material waste.
Mechanical Strength

ASME-Grade Pressure Resilience: The dense array of laser-fused dimple spots acts as an integrated structural lattice. This provides outstanding resistance to cyclic thermal deformation and extreme pressure ratings (up to 63 Bar), guaranteeing rock-solid operational reliability and safety in high-stress processing lines.

Versatility

Infinite Geometric Adaptability: Our pillow plates are fully engineered to process a vast spectrum of media, from cryogenic liquids to superheated steam. They can be laser-welded as single independent plates, dense immersion banks, or custom-curved to form dimpled jackets on tanks, seamlessly matching your exact factory parameters.
Hygienic Properties

Ultra-Sanitary, Crevice-Free Profile: Engineered with smooth outer plate surfaces and weld pools entirely free of chemical inclusions, our pillow plates prevent organic material accumulation or crystallization. The non-fouling exterior is ideally optimized for automated Clean-in-Place (CIP) regimes, satisfying the most stringent food, dairy, and pharmaceutical sanitary standards.

Cost-Effectiveness

Reduced Energy & Asset Lifecycle OPEX: By utilizing automated CNC laser fabrication and reducing net raw material consumption, SHPHE lowers initial manufacturing costs. The perfect combination of boosted heat efficiency and anti-fouling surfaces directly lowers your ongoing fuel bills and maintenance costs, unlocking long-term economic benefits.

Parameter Item	Parameter
Max. Area Each Plate	24㎡
Plate Thickness	0.8 – 4mm
Design Temperature	-20 ~ 300℃
Max. Design Pressure	63 Bar
Plate material	304, 316L, 2205, 904L, ST13, C-276, Titanium etc,

How We Design and Manufacture Your Custom Pillow Plate

Engineering Parameters Definition

We analyze the exact thermodynamic duty of your application—whether processing falling films, tank immersion, or solid gas banks—to calculate the exact panel dimensions, material thickness, and structural load-bearing parameters required for your plant.

Microchannel Profile Mapping

Our design team custom-models the dimpled layout, laser welding pitch (e.g., cross grid, diagonal grid), and inflation height using premium software to achieve uniform velocity profiles while minimizing process pressure drops.

Aggressive Media Metallurgy

We pick and process tailored metals matching the chemical reality of your plant, including Stainless Steel (304/316L), Duplex Steel (2205), premium 904L, and pure Titanium to neutralize corrosive and high-temperature erosion.

Automated Fiber Laser Fusion & Assembly

Utilizing high-speed, automated CNC fiber laser seam and spot welding machines, we create faultless, high-penetration fusions across the plate surface. Panels are then hydraulically inflated and flawlessly integrated into your customized tanks or heat exchanger housings via certified ASME procedures.

‌Your Needs, Our Priority
