What is Plate Air Preheater?

The SHPHE Plate Air Preheater operates on advanced gas-to-gas heat transfer principles, utilized in fully customized countercurrent or crossflow fluid regimes. The system is built around a fully welded matrix of corrugated metal plates that form discrete, alternating channels for hot and cold gas flows. What makes the SHPHE design exceptional is our modular, building-block architecture (leveraging proprietary X, E, C, and S thermal bricks), allowing our engineers to scale and stack individual blocks to match any volumetric layout. As raw flue gas stream travels through one side, its heat is conductively drawn through thin plate walls into the clean process air on the opposite side. The engineered plate corrugations generate microscopic flow turbulence, maximizing the convective heat transfer coefficient while eliminating gas stagnation. This allows you to sharply depress stack temperatures while boosting boiler or reformer furnace inputs, while our modular structure ensures that individual blocks can be isolated or replaced over extended lifecycles with minimal plant downtime.

Why Plate Air Preheater?

Investing in an SHPHE Plate Air Preheater yields immediate thermodynamic returns and deep decarbonization value. Our custom gas-to-gas matrices obey a strict rule of thumb in boiler engineering: every 18°C reduction in exhaust flue gas temperature directly boosts your overall boiler efficiency by 1%, slashing your net fuel consumption and cutting greenhouse gas emissions (CO₂, SO₂). By driving stack temperatures down safely above the dew point, our preheaters mitigate regional thermal pollution and significantly decrease particulate carrying capacities into the stack. Furthermore, our robust fully welded plate design minimizes the pressure drop crossover, meaning your draft fans draw less power, while the low-noise profiling supports cleaner, safer, and quieter plant working environments.

What are the advantages of SHPHE Plate Air Preheater?

High Thermal Efficiency: Advanced Convective Heat Transfer Matrix — the heat transfer coefficients of SHPHE corrugated plate elements are 1 to 3 times higher than conventional plain tubular components. Excellent Corrosion Resistance: Metallurgical Protection & Zoned Cost Optimization — SHPHE custom-selects specific steel grades mapped precisely to your local flue gas chemistry, employing a temperature-graded material zoning strategy. Lightweight and Compact: High-Density Spatial Integration — fabricated from high-tensile, thin-gauge industrial metals (ranging from 0.6mm to 2.0mm), delivering massive megawatt heat recovery within a fraction of the space required by conventional rotary or tubular air preheaters. Cost-Effective: Minimized Lifecycle OPEX and Capital Protection — our highly modular asset design guarantees major savings across installation, operation, and maintenance cycles.

How does SHPHE engineer and manufacture custom Plate Air Preheaters?

Modular Design: We utilize four proprietary foundational heat transfer geometries — X brick, E brick, C brick, and S brick — as our baseline building blocks. This flexible modular architecture allows independent blocks to be fabricated and transport-verified easily, minimizing shipping costs and logistics risks. Material Selection: To counteract the highly destructive threats of cold-end sulfuric acid dew point corrosion, SHPHE incorporates advanced process engineering including proprietary Air Film technology, automatic bypass cold-air regulation, and tailored co-current process loops. Thermal Stress Management: SHPHE design strategies integrate internal mechanical compensation devices, flexible floating frames, and low-CTE metallurgies calculated via advanced finite element predictive simulations.

Custom-Engineered Plate Air Preheaters

Certificates: ASME, NB, CE, BV, SGS etc.

Industrial furnace and boiler exhaust gases carry vast amounts of unutilized thermal energy. The SHPHE custom Plate Air Preheater (PAPH) is target-engineered to intercept this high-temperature flue gas, recovering valuable waste heat and transferring it directly back to incoming combustion air or process gas streams. By substantially elevating the temperature of your flame feed, our custom systems optimize combustion thermodynamics, deliver massive fuel savings, and significantly reduce industrial carbon and emissions footprints. Built to withstand severe flue-gas environments, SHPHE PAPH systems serve as the premier choice for modern, energy-intensive plants prioritizing decarb compliance and maximum thermal efficiency.

product details

What is Plate Air Preheater?

The SHPHE Plate Air Preheater operates on advanced gas-to-gas heat transfer principles, utilized in fully customized countercurrent or crossflow fluid regimes. The system is built around a fully welded matrix of corrugated metal plates that form discrete, alternating channels for hot and cold gas flows. What makes the SHPHE design exceptional is our modular, building-block architecture (leveraging proprietary X, E, C, and S thermal bricks), allowing our engineers to scale and stack individual blocks to match any volumetric layout. As raw flue gas stream travels through one side, its heat is conductively drawn through thin plate walls into the clean process air on the opposite side. The engineered plate corrugations generate microscopic flow turbulence, maximizing the convective heat transfer coefficient while eliminating gas stagnation. This allows you to sharply depress stack temperatures while boosting boiler or reformer furnace inputs, while our modular structure ensures that individual blocks can be isolated or replaced over extended lifecycles with minimal plant downtime.
Why Plate Air Preheater?

Investing in an SHPHE Plate Air Preheater yields immediate thermodynamic returns and deep decarbonization value. Our custom gas-to-gas matrices obey a strict rule of thumb in boiler engineering: every 18°C reduction in exhaust flue gas temperature directly boosts your overall boiler efficiency by 1%, slashing your net fuel consumption and cutting greenhouse gas emissions (CO₂, SO₂). By driving stack temperatures down safely above the dew point, our preheaters mitigate regional thermal pollution and significantly decrease particulate carrying capacities into the stack. Furthermore, our robust fully welded plate design minimizes the pressure drop crossover, meaning your draft fans draw less power, while the low-noise profiling supports cleaner, safer, and quieter plant working environments.

Industry Applications of ‌Plate Air Preheater

SHPHE Plate Air Preheaters are dynamically engineered to unlock deep fuel savings and lower plant emissions across diverse, high-consequence energy sectors.

Oil and Gas
Oil and Gas industry is a cornerstone of modern industry, with a supply chain covering everything from the extraction and processing of oil and gas to the production and sale of various petrochemical products. These products are widely used in sectors such as energy, chemicals, transportation, construction, and pharmaceuticals, making the industry essential for economic development. Plate heat exchangers are widely applied in the oil and gas industry due to their high efficiency, compact size, corrosion resistance, and ease of maintenance, making them an ideal choice for this sector.

learn more
Power
Power industry is essential for modern life, driving economic growth and sustainability through advancements in renewable energy, smart grids, and energy storage. It plays a critical role in reducing carbon emissions and ensuring reliable energy access. Plate heat exchangers are vital in this sector, enhancing energy efficiency by optimizing heat transfer in power plants. Their compact design and high efficiency reduce energy consumption and operational costs, supporting sustainable thermal management. Together, the power industry and plate heat exchangers are key to advancing global energy solutions and achieving a greener future.

learn more
Metallurgy
This heat exchanger is widely utilized in metallurgy such as alumina production and mining for handling challenging fluids like slurries and ore suspensions. Its robust design ensures efficient heat transfer, prevents clogging, and facilitates easy cleaning, making it an indispensable solution for demanding industrial applications..

learn more
Environmental protection
Environmental Protection industry focuses on reducing pollution, conserving resources, and promoting sustainable development. Its importance lies in addressing climate change, protecting ecosystems, and ensuring public health. The primary goal is to achieve "zero emissions" by minimizing waste and transitioning to renewable energy. This is achieved through advanced technologies, waste recycling, and energy-efficient systems. Plate heat exchangers (PHEs) play a crucial role by enhancing energy efficiency in industrial processes, reducing energy consumption, and enabling heat recovery. Their compact design and high heat transfer efficiency support sustainable practices, making them essential in achieving emission reduction targets and fostering a greener future.

learn more

product advantage

High Thermal Efficiency

Advanced Convective Heat Transfer Matrix: The heat transfer coefficients of SHPHE corrugated plate elements are 1 to 3 times higher than conventional plain tubular components. By precisely tailoring the flow channel gap spacing and the continuous path length to match the changing densities and volumetric expansions of your hot/cold gas media, our engineering team achieves an optimized thermal profile that yields maximum heat regeneration with minimal hydraulic pressure drops.

Excellent Corrosion Resistance

Metallurgical Protection & Zoned Cost Optimization: To withstand the highly aggressive acidic compounds found in sulfur-rich flue gases, SHPHE custom-selects specific steel grades mapped precisely to your local flue gas chemistry. For maximum cost-effectiveness, we employ a temperature-graded material zoning strategy—deploying premium alloys (such as Corten-A) exclusively in high-corrosion or cold-end zones, while utilizing standard grades in safer sectors, heavily slashing your initial capital investment.
Lightweight and Compact

High-Density Spatial Integration: Fabricated from high-tensile, thin-gauge industrial metals (ranging from 0.6mm to 2.0mm), our plate preheaters are inherently lightweight yet mechanically robust. Because the corrugated design offers an exceptionally dense surface-area-to-volume ratio, it delivers massive megawatt heat recovery within a fraction of the space required by conventional rotary or tubular air preheaters, making it perfect for brownfield retrofit projects.

Cost-Effective

Minimized Lifecycle OPEX and Capital Protection: Our highly modular asset design guarantees major savings across your installation, operation, and maintenance cycles. By optimizing velocity profiles, the self-cleaning plate corrugations actively prevent soot accumulation, keeping thermal efficiency high. When maintenance is required after decades of service, only specific independent modular blocks need upgrading or scaling, preventing the massive capital hit of a total system replacement.

Parameter Item	Parameter
Max. Area	40000㎡
Plate Thickness	0.8 – 2.0 mm
Design Temperature	-20 ~ 800℃
Max. Design Pressure	10 Bar
Plate material	304, 316L, 2205, 310S, 904L, Corten-A

How We Engineer and Manufacture Your Custom Plate Air Preheater

Modular Design

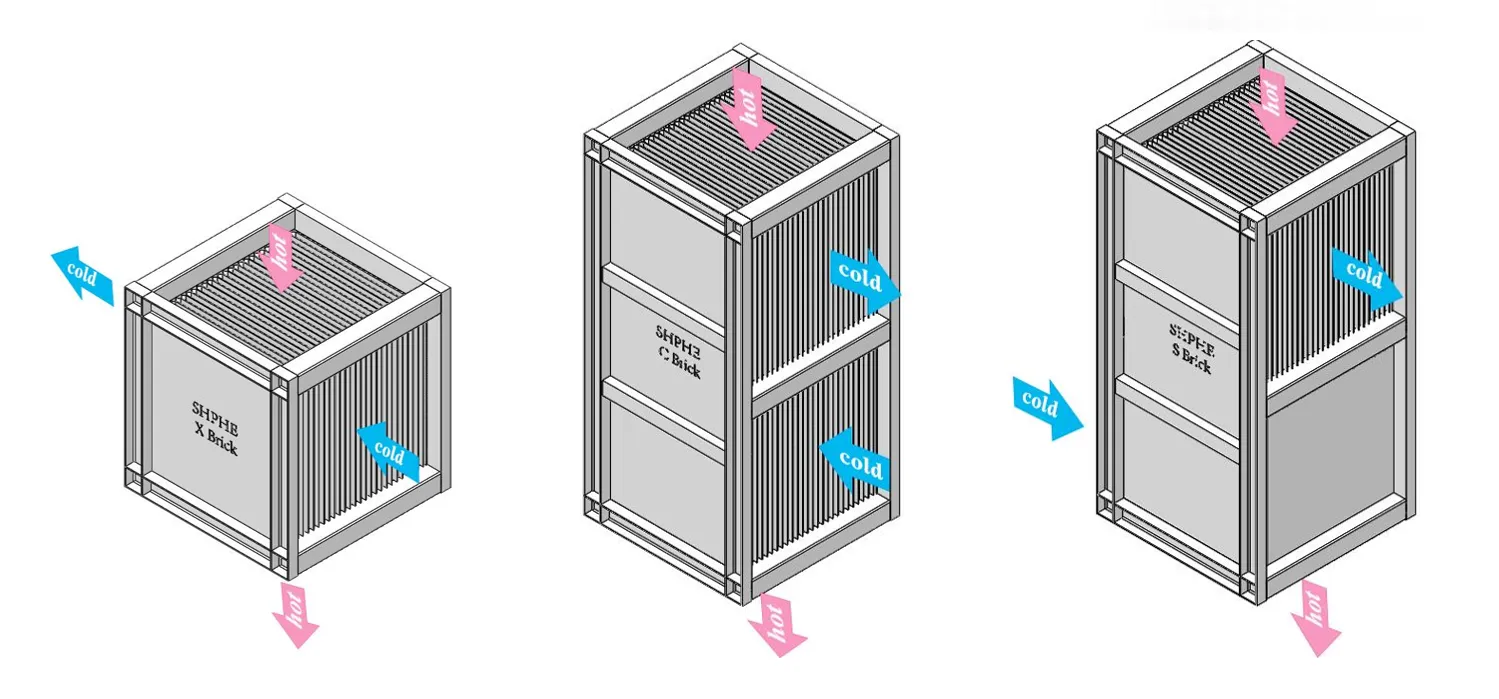

The Brick-System Architecture:
We utilize four proprietary foundational heat transfer geometries—X brick, E brick, C brick, and S brick—as our baseline building blocks. This flexible modular architecture allows independent blocks to be fabricated and transport-verified easily, minimizing shipping costs and logistics risks. On-site, these pre-tested modules are dropped into place and sealed seamlessly together, enabling unlimited scaling for massive gas volume expansions without requiring on-site plate welding.

Material Selection

Cold-End Dew Point Engineering: To counteract the highly destructive threats of cold-end sulfuric acid dew point corrosion, SHPHE incorporates advanced process engineering. Beyond utilising high-conductivity and acid-resistant alloys, we deploy our proprietary Air Film technology, automatic bypass cold-air regulation, and tailored co-current process loops. This comprehensive anti-condensation strategy ensures plate wall temperatures are strictly maintained above the acid dew point, guaranteeing maximum uptime and a dramatically extended lifecycle.

Thermal Stress Management

Flexible Structural Expansion Compensation: Operating at gas boundaries up to 800°C subjects equipment to intense thermal expansion and mechanical contraction cycles. SHPHE design strategies integrate internal mechanical compensation devices, flexible floating frames, and low-CTE metallurgies calculated via advanced finite element predictive simulations. This stress-relieved layout allows independent modules to expand freely without inducing stress cracks, buckling, or weld failures, ensuring safe operation during rapid boiler start-up and shut-down sequences.

‌Your Needs, Our Priority

Products

Custom-Engineered Plate Air Preheaters

product details

What is Plate Air Preheater?

Why Plate Air Preheater?

Industry Applications of ‌Plate Air Preheater

product advantage

High Thermal Efficiency

Excellent Corrosion Resistance

Lightweight and Compact

Cost-Effective

‌Product Parameters

How We Engineer and Manufacture Your Custom Plate Air Preheater

Modular Design

Material Selection

Thermal Stress Management
